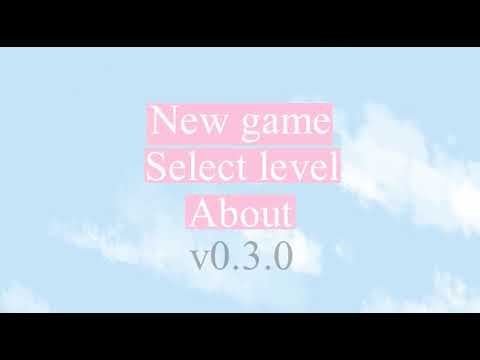

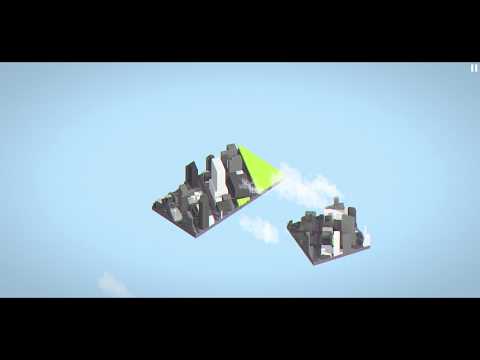

First dev update, with a few videos showing the game running!

From last month the main updates have been relating to:

- Added game states flow and game views (main menu, in game, paused...)

- Splash screens when starting the game

- Linux support as been added and now properly works

- Main menu design, straightforward and simple for now

- First game logic resolution of the tile puzzles is now working with an initial difficulty (tiles can only go in one direction)

- A more advanced game logic where the tiles can be rotated on themselves and also rotate around the initial block of tiles, still experimenting with this feature, which might be split to increment difficulty progressively

From last month the main updates have been relating to:

- Added game states flow and game views (main menu, in game, paused...)

- Splash screens when starting the game

- Linux support as been added and now properly works

- Main menu design, straightforward and simple for now

- First game logic resolution of the tile puzzles is now working with an initial difficulty (tiles can only go in one direction)

- A more advanced game logic where the tiles can be rotated on themselves and also rotate around the initial block of tiles, still experimenting with this feature, which might be split to increment difficulty progressively

cewxel —

Shadow mapping is a well known technique which was first introduced in 1978 by Lance Williams.

It has evolved since then to a lot of different variations and tweaks to be able to run

at interactive frame rates, even though the foundation of the technique remains the same:

This post describes one of the several possible pipelines to implement shadow mapping using Open GL, and is adapted to target mobile hardware using OpenGL ES 2.0 specifications. A modern Open GL implementation would look much different than the one being exposed here.

Implementing shadow maps for a multiplatform solution can quickly become cumbersome, especially for mobile where a big share of the market might not support the extension that you need in order to implement it. When I started implementing the technique I found that using a common solution between all the targets was simpler than looking at extension support and discovering rendering issues on a few of the targets later on. Also, using the simplest variant of shadow mapping is a good trade-off, as the quality will not be the best, but you would need less features from the driver with a potential gain in performance.

An issue not so related to the hardware is*shadow map acne* that can be solved using a small bias. There is no real turnaround for this unless you use other filtering technique similar to variance shadow map. Acne happens naturally because of the inherent finite resolution of the texture used to store the shadow map.

Before starting to implement a rendering technique for a non-specific target, I keep a handful list of resources to look at for GPU hardware shares and extension support for each of the needed features:

- http://opengles.gpuinfo.org/gles_extensions.php

- https://hwstats.unity3d.com/mobile/

In order to implement shadow mapping using Open GL we need at least a framebuffer with a way to sample and store the depth from the light point of view. If we look at framebuffer with depth texture attachment, it is in this case an extension, as the target is Open GL ES 2.0 hardware. Now, looking at the extension**OES_depth_texture** description (from https://www.khronos.org/registry/...ensions/OES/OES_depth_texture.txt):

The great news is that this is exactly what we were looking for, and it is supported by 94% of the hardware, one problem is that the attachment texture may or may not behave like you expect depending on the driver.

The potential issues you can have with driver implementations and pitfall from not having the device with a specific GPU model supporting this extension to test on is a little hazardous, and there is a risk if you rely on it for the graphics of your game.

The extension might as well not be implemented the way you think it is which is, unfortunately, quite common in the GL ecosystem. What seems to be a safe choice in those cases it to simply use what is specifically said to be supported on the official Open GL specifications of your target (in this particular case 2.0) and find workarounds in order to have what is needed for your rendering technique.

Less dependency on driver implementations is important if your engine aims numerous platforms as a target.

**Depth value storage**

1. Depth write pass (generating the shadow map)

In this implementation, the depth is stored as a packed RGB value in the color texture attachment of the framebuffer so we don't rely on a depth texture attachment.

Note that if you are using this technique, the texture attachment must be filtered using GL_NEAREST, we don't want depth values to be interpolated when sampling.

NPOT (Non Power Of Two) texture is an issue on some mobile hardware (extension**GL_OES_texture_npot**), so instead of making a framebuffer with an attached texture of size of the default viewport, the texture attachment is set to a **512**x**512** pixels texture resolution, which reduces the footprint of the shadow map at both depth sampling and depth writing.

The fragment shader used to pack the depth value is the following:

A separate vertex buffer is used in this pass, with a vertex layout containing only the position of the meshes.

The packed depth looks like this:

Which is a quantized representation of the following:

Using this technique, there will still be precision issues, but we will make sure that the precision is maximized when generating the view frustum for this pass.

2. Depth sampling pass

The values of the depth are unpacked and used as follow in the fragment shader:

**shadowCoord** is a value computed in the vertex shader and passed along the fragment shader as a varying:

Where**lightModelViewProjection** is the transformation matrix transforming position in the light point of view. This matrix is the one used in the depth write pass, it is an important one as it also defines the precision of your depth.

When calculating the uv to sample the shadow map, a bias matrix can be used to reduce the number of operations in the fragment shader and offload it in the vertex shader.**lightModelViewProjection** would be multiplied by this bias matrix which is a matrix translating and scaling by **+0.5** on every axis.

**Shadow map bias**

Shadow map bias is a visual artifact that happens because the shadow map is in a limited resolution. You can imagine the scene from the light point of view to be perceived through a grid, all grid bucket will be assigned a single depth, which inherently can't represent the precise depth of all the geometry falling under that grid bucket (commonly called texel).

If the shadow map had an infinite resolution, all the texels would have an infinitely small area and the artifact would not be visible. So this issue is not due to the mathematical definition of shadow map technique itself, it is an issue happening because of the representation that we have to use in order to implement it.

In practice, this issue can be solved by applying an offset to the shadow map to move its depth upwards in the direction of the current camera view, so more points falls into it when comparing the depths. In this implementation, the preconditions of this bias is:

*slope scaled depth bias*, because the bias is adaptive in function of the slope of the geometry the shadow map is sampled from.

A function that works for the preconditions we exposed is**tan(arccos(x))** where **x** is the visibility term **dot(N, L)** clamped between **0** and **1**, where **N** is the surface normal, and **L** the normalized surface to light vector.

This function is also equals to**sqrt(1-x*x)/x** (demonstrated by using a few trigonometric formulas) which might be more efficient to use the shader.

**Optimize depth buffer precision**

To optimize the shadow map resolution and depth precision, you want the view frustum to be as tight as possible with every side of the cuboid tightly fitting the scene. My use case works quite nicely since the scene is composed of a few tiles where the bounding box can be updated every time a tile has moved.

The idea is to generate a view matrix for the light camera, and transform the world space bounding box of the scene with it. This matrix can be obtained by making the camera look at the origin of the world from its opposite direction vector as center, and kill the translation component from the view matrix, so only the rotation components remain.

The documented code to fit the orhographic frustum to the scene is the following:

This can be visualized by the blue box in the following debug view:

**References & Further reading**

[1] http://fabiensanglard.net/shadowmapping/index.php

[2] https://software.intel.com/en-us/...solution-rendering-on-opengl-es-2

[3] http://aras-p.info/blog/2007/03/0...ll-spent-encoding-floats-to-rgba/

[4] https://msdn.microsoft.com/en-us/...ws/desktop/ee416324(v=vs.85).aspx
